Name: Belparts excavator SK135SR YX32W00002F YY32W00004F1 kobelco swing gearbox bearing replacement
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK135SR
Price: 475.00 USD
Availability: InStock

En casa > productos > Caja de cambios del oscilación del excavador >

Belparts excavator SK135SR YX32W00002F YY32W00004F1 kobelco swing gearbox bearing replacement

Kobelco excavator swing gearbox bearing

SK135SR swing gearbox replacement part

Excavator swing gearbox with warranty

Lugar de origen:

HECHO EN CHINA

Nombre de la marca:

Belparts

Número de modelo:

SK135SR

Éntrenos en contacto con

Pida una cita

Belparts excavator SK135SR YX32W00002F YY32W00004F1 kobelco swing gearbox bearing replacement

Detalles del producto

Modelo:

SK135SR

Número de parte:

YX32W00002F YY32W00004F1

Nombre de parte:

Caja de engranajes giratoria

Luz de luz:

Excavador SK135SR YX32W00002F YY32W00004F1 KOBELCO CABEZA DE CAMINO

Solicitud:

Excavadoras, maquinaria de ingeniería

Nombre del producto:

caja de cambios de oscilación kobelco

Condición:

Nuevo/usado

Precio:

Negotiable Price

Condiciones de pago y envío

Cantidad de orden mínima

1 pieza

Precio

Negotiable price

Detalles de empaquetado

Embalaje de madera

Tiempo de entrega

1-7 días

Condiciones de pago

T/T, PayPal y garantía comercial

Capacidad de la fuente

1000 piezas

Productos relacionados

Belparts excavator DH290LC-V slewing reduction 2101-1025G 2101-1025E 2101-1025H Doosan excavator slewing gearbox

Obtenga el mejor precio

SK135SR YX32W00002F YY32W00004F1 Kobelco Excavator slewing gearbox gear wear

Obtenga el mejor precio

Doosan excavator DH290LC-V swing reduction gearbox 2101-1025G 2101-1025E 2101-1025H

Obtenga el mejor precio

Komatsu excavator PC350-8 swing reduction gearbox 207-26-00300 706-7H-01040

Obtenga el mejor precio

Éntrenos en contacto con

+86 13247509480

belparts02@gmail.com

86-020-32384870

Contacto ahora

Descripción de producto

Belparts Excavator SK135SR Swing Gearbox Bearing Replacement

Original OEM replacement parts for Kobelco SK135SR excavator swing gearbox bearing assembly.

Product Specifications

Model	SK135SR
Category	Hydraulic Motor
Part Numbers	YX32W00002F, YY32W00004F1
Place of Origin	Other Country
Condition	Original & OEM
Warranty	12 months
MOQ	1 pcs
Production Capacity	1000pcs/Month
Standard	Standard
Payment Terms	L/C, T/T, Trade Assurance
Delivery Time	1-3 days (depending on order)
Transport	By Sea, Air or DHL

Component List

No.	Part Number	Description	Weight/Dimensions	Qty
-	2101-1025E	SWING REDUCTION GEAR ASS'Y		1
-	2101-1025G	REDUCTION GEAR ASS'Y		1
-	2101-1025H	REDUCTION GEAR ASS'Y		1
-	2101-1025I	REDUCTION GEAR ASS'Y	337 kg	1
1	2423-1184D	CASING, FRONT	38 kg	1
2	2423-1185	CASING, MIDDLE	31 kg	1
3	2112-1156C	SHAFT, DRIVE	52 kg	1
3	2112-1156E	SHAFT, DRIVE	43 kg	1
4	2104-1004C	GEAR, RING(NO.2)		1
4	2104-1004E	GEAR, RING(NO.2)	29 kg / 46046090	1
5	2101-1006C	GEAR, PLANETARY(NO.2)		3
5	2101-1006E	GEAR, PLANETARY(NO.2)	7 kg	3
6	2101-1005E	GEAR, SUN(NO.2)		1
6	2101-1005G	GEAR, SUN(NO.2)	6 kg	1
6	2101-1005H	GEAR, SUN(NO.2)	6 kg	1
7	2104-1005C	GEAR, RING(NO.1)	8 kg	1
8	2101-1031	GEAR, PLANETARY(NO.1)	1 kg	3
9	2101-1032	GEAR, SUN(NO.1)	3 kg	1
10	2230-1034	CARRIER	8 kg	1
11	2123-1631B	PIN	2 kg	3
12	2114-1553	WASHER, THRUST		6
12	2114-1553A	WASHER, THRUST		6
13	2549-1118	BUTTON, THRUST		1
14	2123-1632	PIN(NO.1)	1 kg	3
15	2412-9001	SIDE PLATE NO.1(=2412-9001P)	12 kg	3
16	2412-9002	SIDE PLATE NO.2		3
17	2412-9003	SIDE PLATE(=2412-9003P)		1
18	2505-1009	BAR, LEVEL	1 kg	1
19	2182-1304	PIPE		1
20	2278-1009A	RING, SPACER	1 kg	1
21	2123-1634	PIN, KNOCK		4
22	2109-9031	SPH.ROLLER BRG.(=2109-9031P)	12 kg	1
23	2109-9032	SPH.ROLLER BRG.(=2109-9032P)	5 kg	1
24	2216-9001	NEEDLE CAGE(=2216-9001P)		3
25	S2225971	BOLT, LOCK	1 kg	16
26	S2224871	LOCK BOLT, REDUCTION GEAR	E0502399	12
27	2180-1235	SEAL, OIL		1
28	2123-1633D2	PIN, SPRING		3

Key Features

Hydraulic Motor: The power input, converting hydraulic pressure into rotational motion.
Multi-Stage Planetary Gear Reduction Mechanism: The core transmission component, typically comprising 2-3 stages of planetary gear sets, responsible for speed reduction and torque multiplication.
Output Shaft (Pinion Gear): The power output, meshing directly with the slewing ring gear to deliver powerful rotational torque.
Housing & Bearings: A robust housing encloses all components and provides support. Precision bearings ensure stable rotation of shafts under immense radial and axial loads.
Sealing System: Tight seals prevent internal lubricant leakage and external contaminants (mud, water) from entering, ensuring long service life.

Product Images

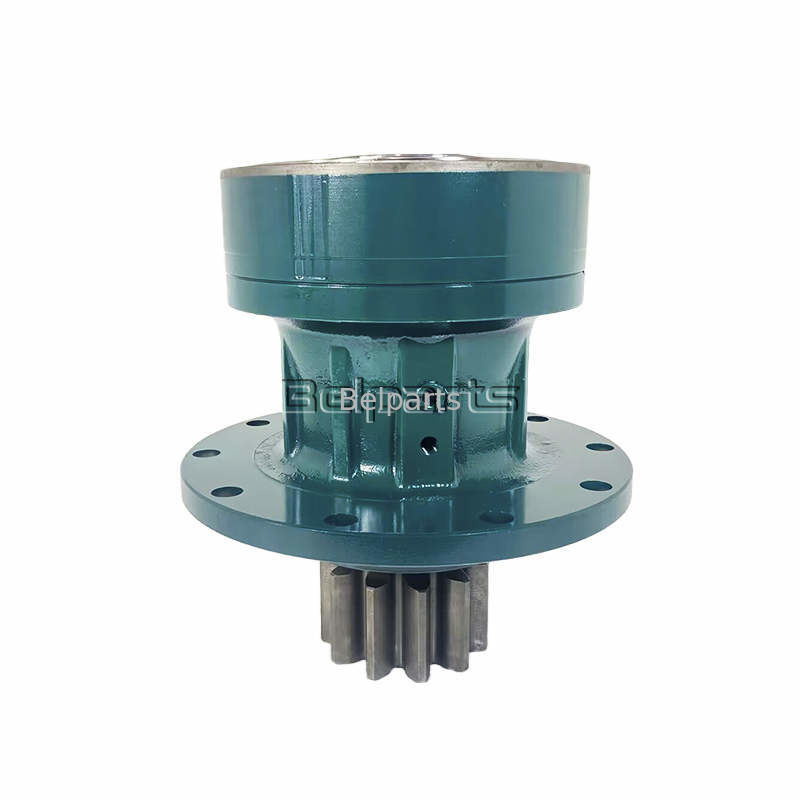

Belparts excavator SK135SR YX32W00002F YY32W00004F1 kobelco swing gearbox bearing replacement

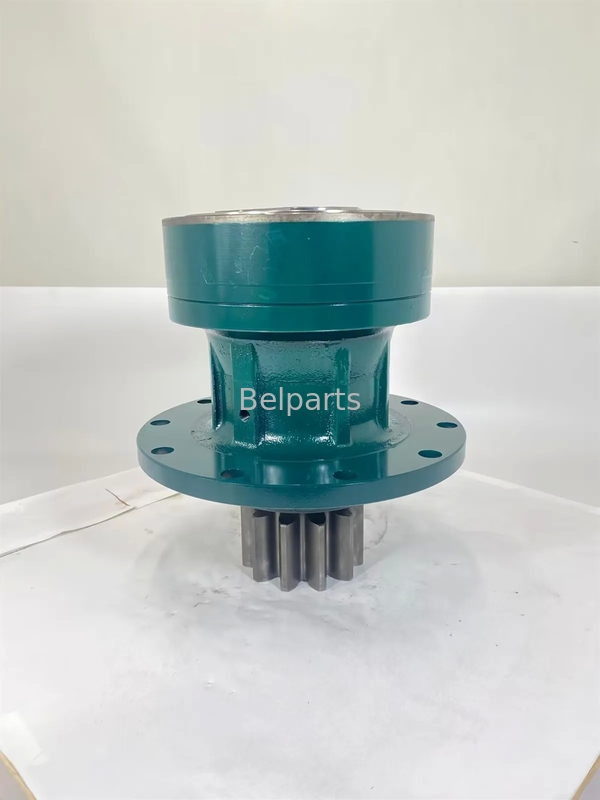

Kobelco excavator swing gearbox bearing

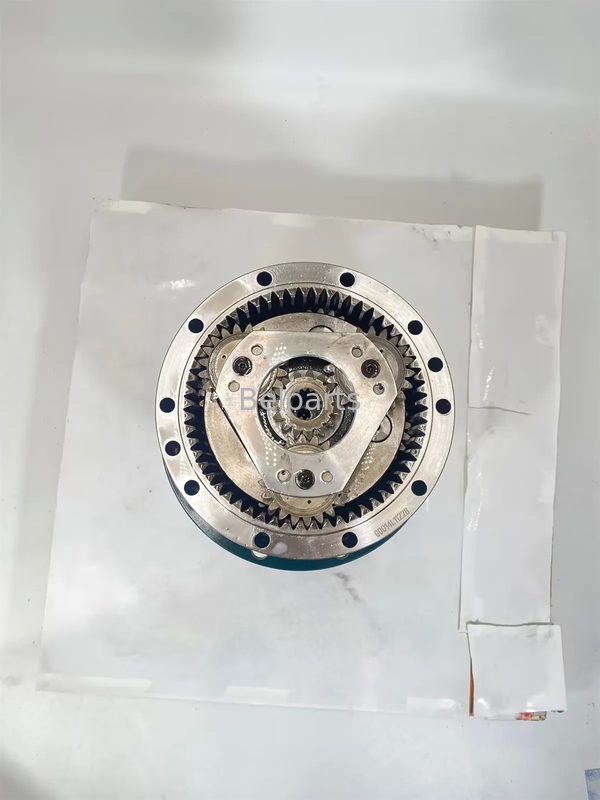

SK135SR swing gearbox replacement part
