Name: Belparts R220LC-9 JMV147 final drive 31N6-10051 excavator travel motor gearbox kit for Hyundai
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: R220LC-9 JMV147
Price: 475.00 USD
Availability: InStock

En casa > productos > Montaje del motor del viaje >

Belparts R220LC-9 JMV147 final drive 31N6-10051 excavator travel motor gearbox kit for Hyundai

Hyundai excavator final drive kit

R220LC-9 travel motor gearbox

JMV147 excavator travel motor

Lugar de origen:

Hecho en china

Nombre de la marca:

Belparts

Número de modelo:

R220LC-9 JMV147

Éntrenos en contacto con

Pida una cita

Belparts R220LC-9 JMV147 final drive 31N6-10051 excavator travel motor gearbox kit for Hyundai

Detalles del producto

Modelo:

R220LC-9

Número de parte:

31n6-10051 JMV147

Nombre de parte:

caja de cambios final de la impulsión

Luz de luz:

R220LC-9 JMV147 31N6-10051 Motor de viaje de excavadores

Solicitud:

Piezas de repuesto de excavadoras

Nombre de parte:

Motor de viaje de excavadora

Condición:

El OEM auténtico/utilizó

Entrega:

3-7 días

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Precio

Negotiated price

Detalles de empaquetado

Estuche de madera

Tiempo de entrega

1 ~ 3 días

Condiciones de pago

T/t, garantía comercial, PayPal

Capacidad de la fuente

1000pcs

Productos relacionados

Hitachi ZX330-3 final drive assy 9190296 9195488 excavator hydraulic motor

Obtenga el mejor precio

Hitachi excavator HMGF033CA Travel motor assembly replacement EX200-2 9101523

Obtenga el mejor precio

Belparts excavator HMGF033CA EX200-2 9101523 hydraulic travel motor assy kit

Obtenga el mejor precio

Belparts excavator R330LC-9S 31Q9-40011 travel motor gearbox for hyundai parts

Obtenga el mejor precio

Éntrenos en contacto con

+86 13247509480

belparts02@gmail.com

86-020-32384870

Contacto ahora

Descripción de producto

Belparts R220LC-9 JMV147 final drive 31N6-10051 excavator travel motor gearbox kit for Hyundai

Product Specifications

Model	R220LC-9 JMV147
Part Name	Excavator Travel Motor
Part Number	31N6-10051
Place of Origin	China/ Other Country
Condition	OEM/ Genuine/Used
Warranty	12 months
MOQ	1 pcs
Production Capacity	1000pcs /Month
Standard or Nonstandard	Standard
Payment Term	L/C, T/T, Trade Assurance
Delivery Time	1-3 days (depend on order)
Means of Transport	By Sea, Air or DHL
Guarantee	We will check and send detailed pictures to buyers for confirmation

List of spare parts

#	Part No	Part Name	Qty.
*	31N6-10051	MAIN PUMP ASSY *-1,2,3,4	1
*-1	@	FUEL INJECTION PIPE & NOZZLE	1
111	XJBN-00077	DRIVE SHAFT(F)	1
113	XJBN-00078	DRIVE SHAFT(R)	1
114	XJBN-00351	COUPLING-SPLINE	1
123	XJBN-00950	BEARING-ROLLER	2
124	XJBN-00080	BEARING-NEEDLE	2
127	XJBN-00081	SPACER-BEARING	4
S141	XJBN-00067	BLOCK-CYLINDER	2
S151	XJBN-00061	PISTON	18
S152	XJBN-00062	SHOE	18
NK153	XJBN-00082	PLATE-SET	2
156	XJBN-00083	BUSHING-SPHERICAL	2
157	XJBN-00084	SPRING-CYLINDER	18
211	XJBN-00085	PLATE-SHOE	2
S212	XJBN-00070	PLATE-SWASH	2
S214	XJBN-00071	BUSHING-TILTING	2
251	XJBN-00086	SUPPORT	2
261	XJBN-00087	COVER(F)-SEAL	1
271	XJBN-00088	CASING-PUMP	2
312	XJBN-00089	BLOCK-VALVE	1
S313	XJBN-00065	PLATE-VALVE(R)	1
S314	XJBN-00068	PLATE-VALVE(L)	1
401	XJBN-00090	SCREW-HEX SOC HD	8
406	XJBN-00355	SCREW-HEX SOC HD	4
466	XJBN-00356	PLUG	2
468	XJBN-00357	PLUG	4
490	XJBN-00032	PLUG	18
S531	XJBN-00358	PIN-TILTING	2
532	XJBN-00091	PISTON-SERVO	2
534	XJBN-00092	STOPPER(L)	2
535	XJBN-00093	STOPPER(S)	2
S541	XJBN-00859	SEAT	4
S543	XJBN-00860	STOPPER	2
S544	XJBN-00861	STOPPER	2
S545	XJBN-00359	BALL-STEEL	4
S548	XJBN-00360	PIN-FEED BACK	2
K702	XJBN-00918	O-RING	2
K710	XJBN-00095	O-RING	1
K717	XJBN-00096	O-RING	4
K724	XJBN-00361	O-RING	16
K725	XJBN-00362	O-RING	4
K728	XJBN-00363	O-RING	4
K732	XJBN-00912	O-RING	2
K774	XJBN-00098	SEAL-OIL	1
789	XJBN-00099	RING-BACK UP	2
792	XJBN-00100	BACK-UP RING	2
806	XJBN-00101	NUT-HEX	2
808	XJBN-00364	NUT	2
824	XJBN-00102	RING-SNAP	2
885	XJBN-00103	PIN-VALVE PLATE	2
886	XJBN-00365	PIN-SPRING	4
901	XJBN-00104	BOLT-EYE	2
953	XJBN-00105	SCREW-SET	2
954	XJBN-00106	SCREW-SET	2
981	XJBN-00391	NAME PLATE	1
983	XJBN-00341	PIN	2
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4020	1
*-3	@	FUEL INJECTION PIPE & NOZZLE SEE 4030	1
*-4	@	FUEL INJECTION PIPE & NOZZLE SEE 4040	1
011	XJBN-00060	PISTON SUB ASSY SEE ILLUST	2
013	XJBN-00063	CYLINDER ASSY(RH) SEE ILLUST	1
014	XJBN-00066	CYLINDER ASSY(LH) SEE ILLUST	1
030	XJBN-00069	SWASH PLATE SUB ASSY SEE ILLUST	2
041	XJBN-00072	CHECK VALVE ASSY 1 SEE ILLUST	2
042	XJBN-00075	CHECK VALVE ASSY 2 SEE ILLUST	2
530	XJBN-00366	TILTING PIN ASSY SEE ILLUST	2
K	XJBN-00971	PUMP UNIT SEAL KIT SEE ILLUST	1

The excavator hydraulic pump acts as the "heart" of the hydraulic system, converting engine mechanical energy into hydraulic power to drive actuators (e.g., cylinders, motors). Its core principle relies on the reciprocating motion of pistons within cylinders, cyclically altering chamber volume to suction and pressurize oil. As a variable-displacement pump, it dynamically adjusts output flow based on load demand, delivering stable high-pressure (35MPa+) power for precise digging force while optimizing energy efficiency.

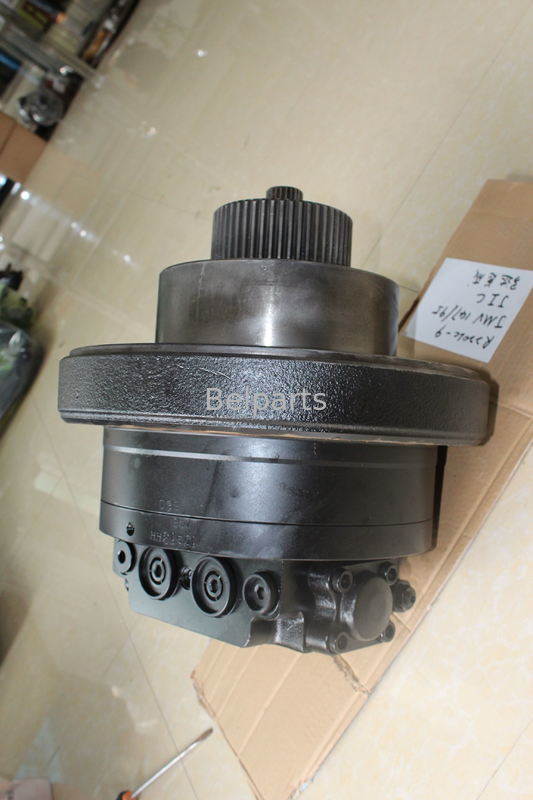

Belparts R220LC-9 JMV147 final drive 31N6-10051 excavator travel motor gearbox kit for Hyundai 0

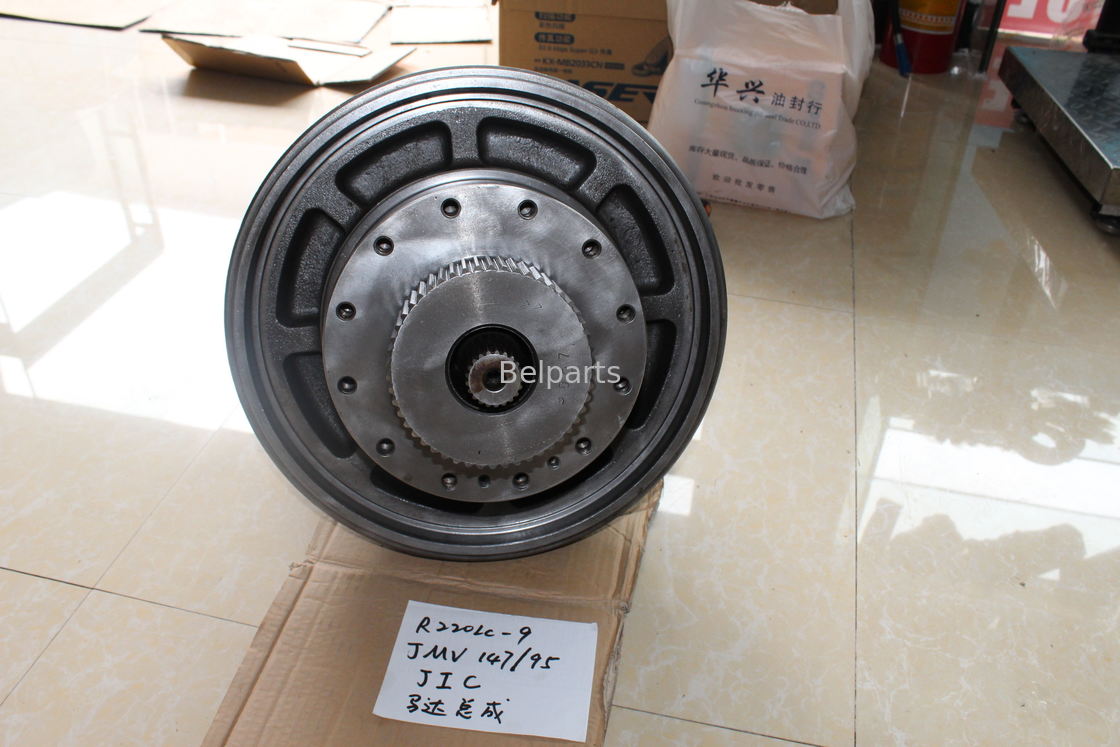

Belparts R220LC-9 JMV147 final drive 31N6-10051 excavator travel motor gearbox kit for Hyundai 1
