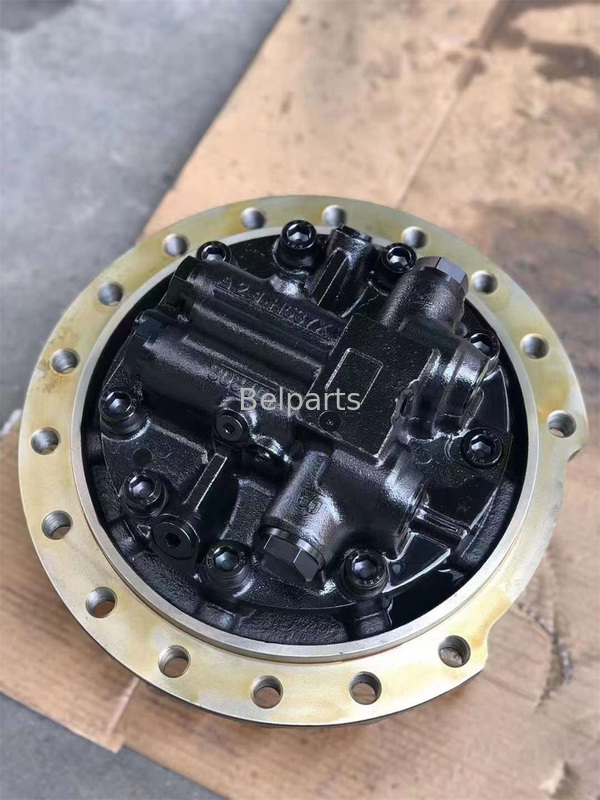

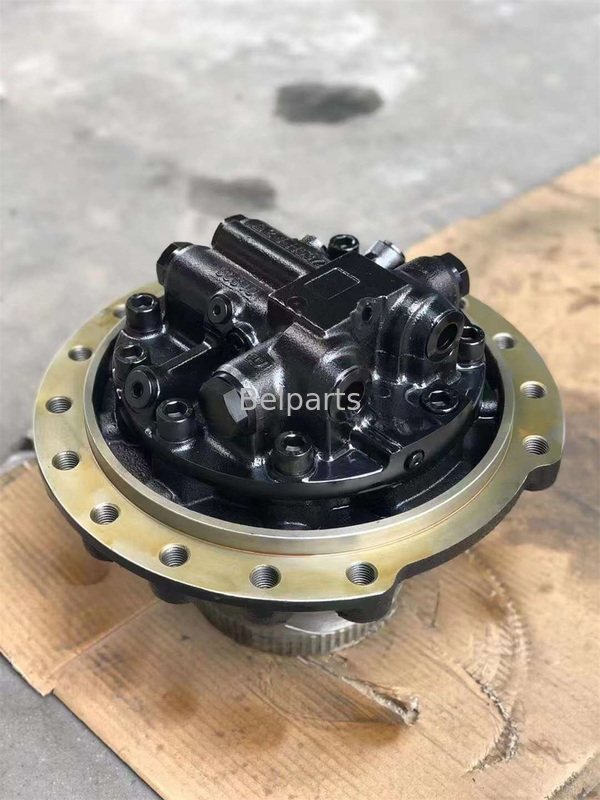

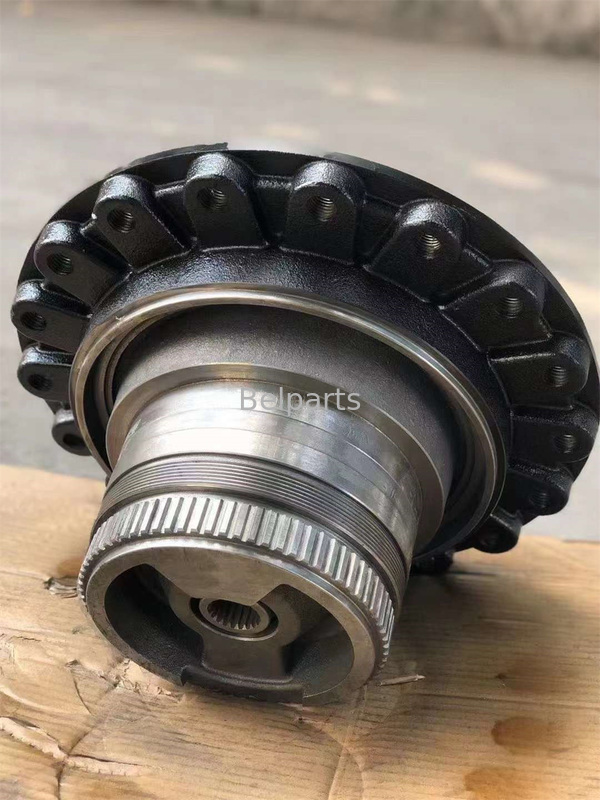

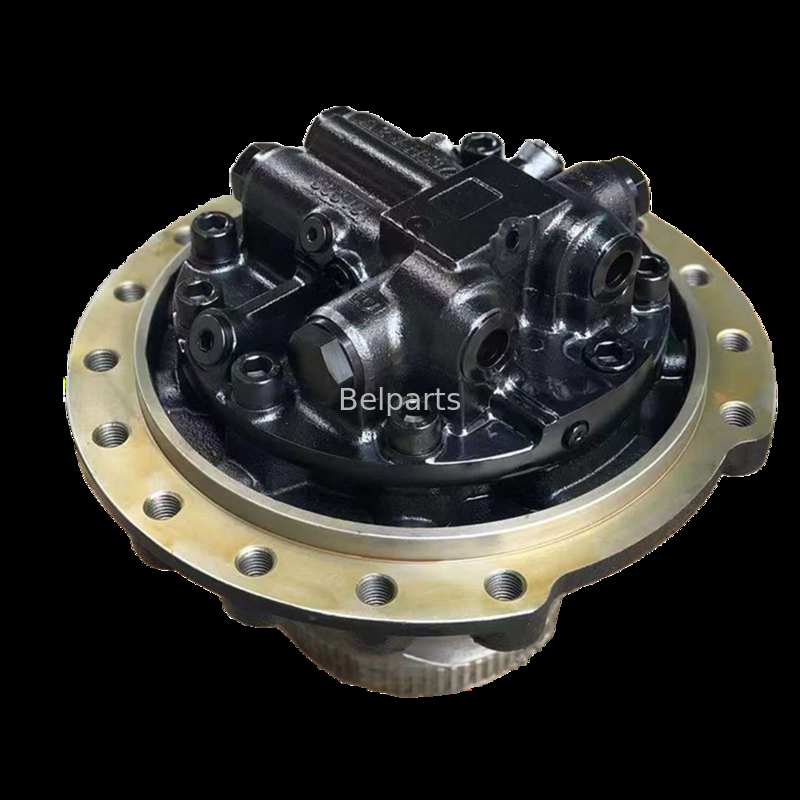

Name: Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: HMGE36EA ZX200 ZX200-1 ZX200-3
Price: 475.00 USD
Availability: InStock

En casa > productos > Montaje del motor del viaje >

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

Excavator travel motor final drive

ZX200 excavator gearbox assembly

HMGE36EA final drive gearbox

Lugar de origen:

Hecho en china

Nombre de la marca:

Belparts

Número de modelo:

HMGE36EA ZX200 ZX200-1 ZX200-3

Éntrenos en contacto con

Pida una cita

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

Detalles del producto

Modelo:

HMGE36EA ZX200 ZX200-1 ZX200-3

Número de parte:

9234034 9237802

Nombre de parte:

Impulsión final de Hitachi

Luz de luz:

HMGE36EA ZX200 ZX200-1 ZX200-3 motor de desplazamiento 9234034 9237802

Aplicación:

Piezas de repuesto de excavadoras

Nombre de parte:

Excavador Travel Motor Assy

Condición:

El OEM auténtico/utilizó

Entrega:

3-7 días

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Precio

Negotiated price

Detalles de empaquetado

Estuche de madera

Tiempo de entrega

1 ~ 3 días

Condiciones de pago

T/t, garantía comercial, PayPal

Capacidad de la fuente

1000pcs

Productos relacionados

EX285 Final Drive for Hitachi Excavator spare parts 87573484 Travel Motor Assembly

Obtenga el mejor precio

320D2 Final Drive for Excavator spare parts 333-2988 3332988 Travel Motor Assembly Aftermarket

Obtenga el mejor precio

EX135 Final Drive for Hitachi Excavator spare parts 4405308 Travel Motor Assembly

Obtenga el mejor precio

306E Final Drive for Excavator spare parts 452-6207 336-3985 333-5641 4526207 3363985 3335641 Travel Motor Assembly

Obtenga el mejor precio

Éntrenos en contacto con

+86 18520556972

belparts01@gmail.com

86-020-32384870

Contacto ahora

Descripción de producto

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

The excavator travel motor assembly is a critical component of the machine's chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator's stability, traction, and operational efficiency.

Product Specifications

Model	HMGE36EA ZX200 ZX200-1 ZX200-3
Part Name	Excavator Travel Motor
Part Number	9234034 9237802
Place of Origin	Other Country
Condition	Original
Warranty	12 months
MOQ	1 pcs
Production Capacity	1000pcs /Month
Standard or Nonstandard	Standard
Payment Term	L/C, T/T, Trade Assurance

List of spare parts

#	Part No	Part Name	Qty.
	9234034	MOTOR; OIL (FOR ASSEMBLY OF MACHINE)	1
	9237802	MOTOR; OIL (FOR TRANSPORTATION)	1
00	1031123	. HOUSING	1
01	4613831	. SEAL; OIL	1
03	4601724	. PISTON	1
07	2049166	. SHAFT	1
08	959499	. RING; RETAINING	1
09	4600108	. PIN	2
10	4600133	. BRG.; ROL.	1
15	8075190	. PISTON ASS'Y	9
15	8099321	. PISTON	9
16	3081570	. RETAINER	1
17	4397757	. BUSHING	1
18	2049256	. PLATE; SWASH	1
19	4396747	. SPRING; COMPRES.	6
20	2042060	. ROTOR	1
20	2052977	. ROTOR	1
20	2051451	. ROTOR	1
22	3081593	. PLATE; FRICTION	4
23	3081592	. PLATE	4
25	3081595	. PISTON	1
26	4396775	. O-RING	1
28	4396774	. O-RING	1
29	3081594	. SPRING; DISC	1
30	4420958	. O-RING	1
31	4506415	. O-RING	2
34	9234016	. VALVE; BRAKE (FOR ASSEMBLY OF MACHINE)	1
34	9237801	. VALVE; BRAKE (FOR TRANSPORTATION)	1
34	9247662	. VALVE; BRAKE (FOR ASSEMBLY OF MACHINE)	1
34	9260003	. VALVE; BRAKE (FOR TRANSPORTATION)	1
35	4396759	. BRG.; NEEDLE	1
35	4631910	. BRG.; NEEDLE	1
37	4610452	. PIN; KNOCK	2
37	4630921	. PIN; KNOCK	2
38	3101081	. PLATE; VALVE	1
38	3106481	. PLATE; VALVE	1
40	M341850	. BOLT; SOCKET	9

Working Principle

The undercarriage is driven by the hydraulic system, which powers the travel motor to rotate the sprocket, propelling the track. The idler wheel and carrier rollers ensure proper track movement, while track rollers prevent sagging. The track frame maintains overall stability, allowing the excavator to move flexibly across rough terrain.

Features & Advantages

High Driving Force: Adapts to challenging terrains like mud, sand, and rocky surfaces.
Superior Stability: Wide-track design reduces ground pressure, ensuring stability on soft ground.
Durability: Made of high-strength materials for wear and impact resistance, extending service life.
Easy Maintenance: Modular design simplifies disassembly and maintenance, minimizing downtime.

5. Applications

The undercarriage is widely used in construction sites, mining, agriculture, and forestry, particularly in environments requiring frequent movement and operation on uneven ground.
