Lugar de origen:
Porcelana
Nombre de la marca:
Belparts
Certificación:
CE
Número de modelo:
EC240BLC EC240B
|
Application
|
Excavator
|
|
Part name
|

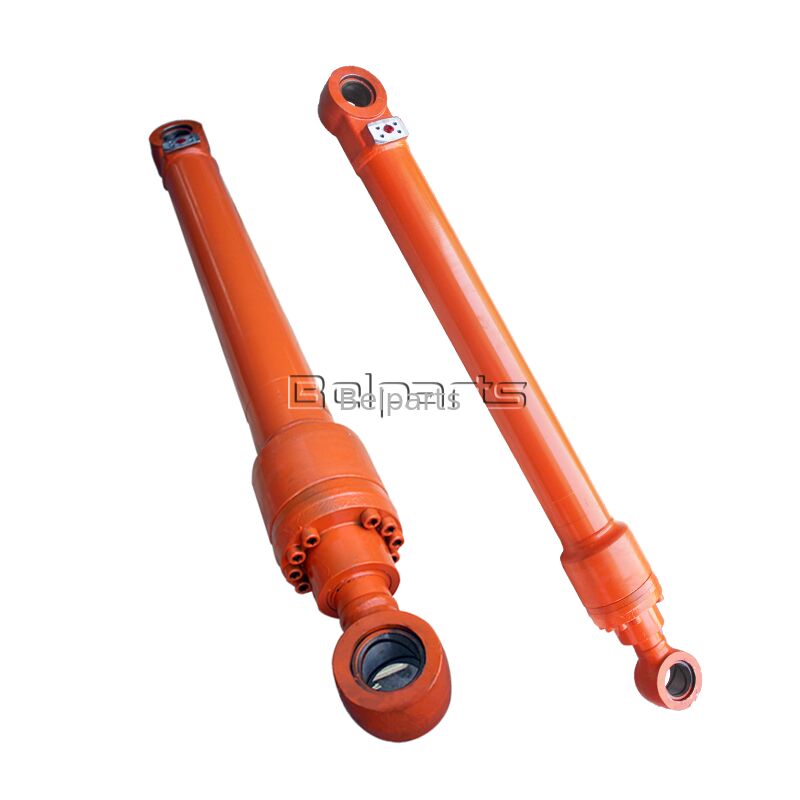

Hydraulic Arm Cylinder
|
|
Suitable for
|
EC240BLC EC240B
|
| Part Number | VOE14510810 VOE14514829 |
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Aftermarket High Quality
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
![]()
| # | Part No. | Description | 8277669 | 8278164 |
|---|---|---|---|---|
| VOE 14510810 | Dipper Arm Cylinder | 1 | ||
| VOE 14514829 | Dipper Arm Cylinder | 1 | ||
| 1 | SA 9216-07010 | Washer; SER NO 10001-12112 | 1 | |
| VOE 14530666 | Washer; SER NO 12113- | 1 | ||
| SA 9216-07010 | Washer | 1 | ||
| 2 | SA 1146-02880 | Pin | 1 | 1 |
| 3 | SA 1146-06890 | Lock nut; SER NO 10001-11073 | 1 | 1 |
| VOE 14524049 | Lock nut; SER NO 11074-12112 | 1 | ||
| VOE 14534347 | Lock nut; SER NO 12113- | 1 | ||
| VOE 14524049 | Lock nut; SER NO 11074- | 1 | ||
| 4 | SA 1146-06870 | Pad; SER NO 10001-12112 | 1 | |
| SA 1146-06870 | Pad | 1 | ||
| 5 | SA 1146-08120 | Seal | 1 | 1 |
| 6 | SA 1146-06590 | Head | 1 | 1 |
| 7 | VOE 14510814 | Tube | 1 | |
| VOE 14515036 | Tube | 1 | ||
| 8 | SA 9624-11621 | Bushing; SER NO 10001-10841 | 1 | |
| VOE 14517941 | Bushing; SER NO 10842- | 1 | ||
| VOE 14511731 | Bushing | 1 | ||
| 9 | VOE 14503884 | Seal | 2 | 2 |
| 10 | VOE 14510818 | Piston rod | 1 | |
| VOE 14515037 | Piston rod | 1 | ||
| 11 | SA 9624-11621 | Bushing; SER NO 10001-10841 | 1 | |
| VOE 14517941 | Bushing; SER NO 10842- | 1 | ||
| VOE 14511731 | Bushing | 1 | ||
| 12 | VOE 14503884 | Seal | 2 | 2 |
| 13 | SA 9481-10003 | Nipple | 1 | 1 |
| 14 | SA 9612-10040 | Bushing | 1 | 1 |
| 15 | VOE 14510824 | Piston; SER NO 10001-12112 | 1 | |
| VOE 14535048 | Piston; SER NO 12113- | 1 | ||
| VOE 14510824 | Piston | 1 | ||
| 16 | VOE 14510425 | Seal | 1 | 1 |
| 17 | SA 9565-11400 | Ring | 2 | 2 |
| 18 | SA 9568-01400 | Seal | 2 | 2 |
| 19 | SA 1146-01410 | Cushion | 1 | 1 |
| 20 | SA 1146-00920 | Cushion Ring | 1 | 1 |
| 21 | SA 9016-22212 | Bolt | 15 | 15 |
| 22 | VOE 13963059 | Set Screw; SER NO 10001-12112 | 1 | |
| VOE 14535763 | Set Screw; SER NO 12113- | 1 | ||
| VOE 13963059 | Set Screw | 1 | ||
| 23 | SA 9511-12130 | O-ring | 2 | 2 |
| 24 | SA 9511-12085 | O-ring | 1 | 1 |
| 25 | SA 9556-10000 | Ring | 1 | 1 |
| 26 | SA 9557-09000 | Ring | 1 | 1 |
| 27 | SA 9563-21000 | Seal | 1 | 1 |
| 28 | SA 9564-21000 | Seal | 1 | 1 |
| 29 | SA 9566-31300 | Ring | 1 | 1 |
| 30 | SA 9566-11300 | Ring | 1 | 1 |
| 31 | SA 9567-21000 | Ring | 1 | 1 |
| 100 | VOE 14514457 | Sealing Kit | 1 | 1 |
More Branded Accessories are Available
![]()
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Guangzhou Belparts Engineering Machinery Limited (Est. 2013) is a premier supplier of high-performance hydraulic parts for global excavator brands. We provide a one-stop shop for mission-critical components with a focus on quality, reliability, and global reach.
Core Product Specialization
We stock a massive inventory for brands like Hitachi, Komatsu, VoIvo, CAT, Hyundai, Kobelco, Kubota, Yanmar, JCB, Deere, Sany, Case, XCMG and Doosan:
Why Choose Us?
![]()
Four-Tier Quality Excellence
We offer the most comprehensive range of quality options in the industry:
Process Features
![]()
About Factory
Belparts have a large workshop forexcavator parts producing, from materialcutting, wielding, heating treating,assembling, debugging,painting, testing,every part we will confirm before leavingthe factory.
![]()
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Ali trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
